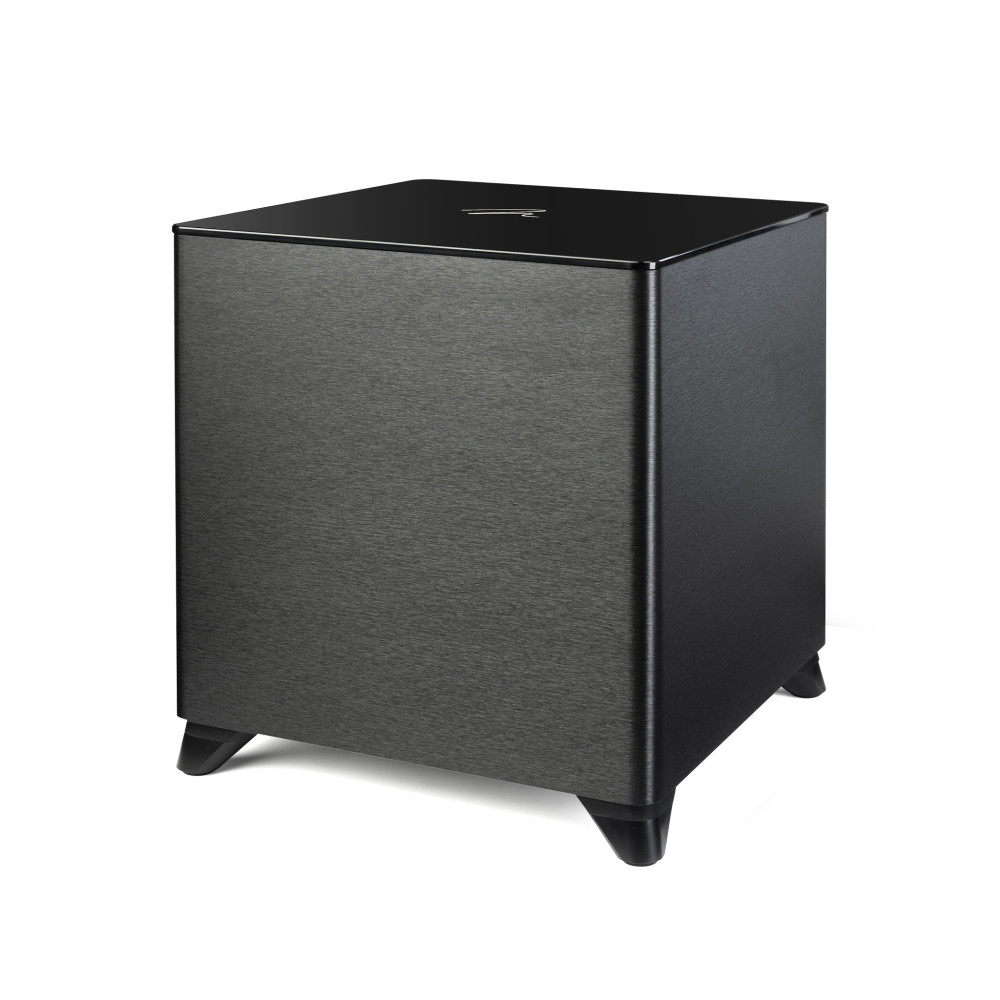

Martin Logan Dynamo Foundation 12

Frequency Response
24–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer
12” (30.5cm) high-excursion, UltraRigid Polypropylene (URP) cone in a stamped steel basket

Amplifier
Magnitude® MT-700 Amplifier with 700W peak (350W continuous)

Digital Signal Processing
High-resolution 200MHz DSP engine with 56-bit processing

Cabinet
Sealed MDF cabinet with reinforced MDF woofer baffle

Controls (on backplate)
Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°

Inputs
Line Level: Left, Right/LFE
Wireless Input
WSK-1 Kit Sold Separately

Power Draw
Max: 350W
Standby: 0.5W

Feet
Non-Slip

Weight
13.2 kg

Dimensions (HxWxD)*
40.6cm x 35.8cm x 35.8cm

Finish
Brushed black vinyl with high-gloss top
