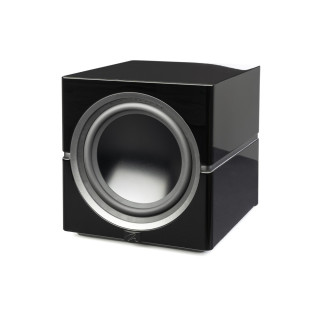

Martin Logan Dynamo 12

Frequency Response
22–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer
12” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket

Amplifier
Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous)

Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing

Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle

Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right (requires banana plugs)

Wireless Input
Integrated Wireless Receiver, Wireless Transmitter Included

Power Draw
Max: 800W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet
Integrated Anti-Vibration Feet (carpet spikes included)

Weight
27.9 kg

Dimensions (HxWxD)*
42.4cm x 39.9cm x 39.9cm

Finish
Gloss Black
